MP-40 2.1

The perfect multichannel processor for immersive formats

The Lyngdorf Audio MP-40 2.1 multichannel processor offers all the advanced technologies for which the brand is known, including the renowned room correction system RoomPerfect™ and the unsurpassed quality in digital signal processing. Designed for small to medium home cinemas, the MP-40 2.1 delivers flagship performance without compromise.

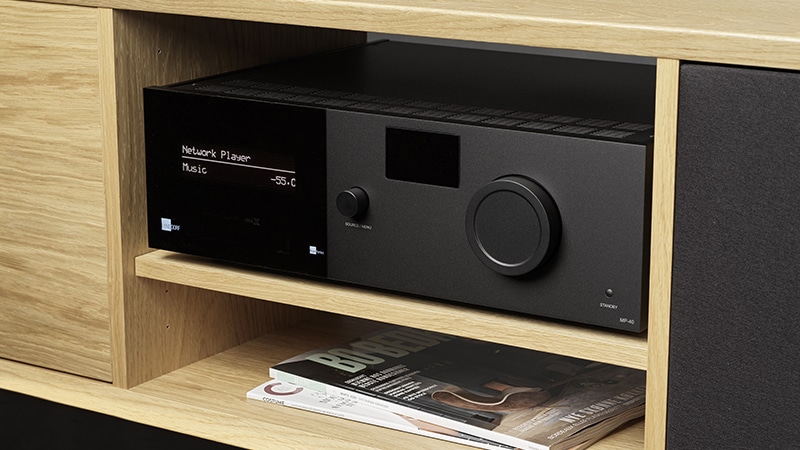

MP-40 front angle view

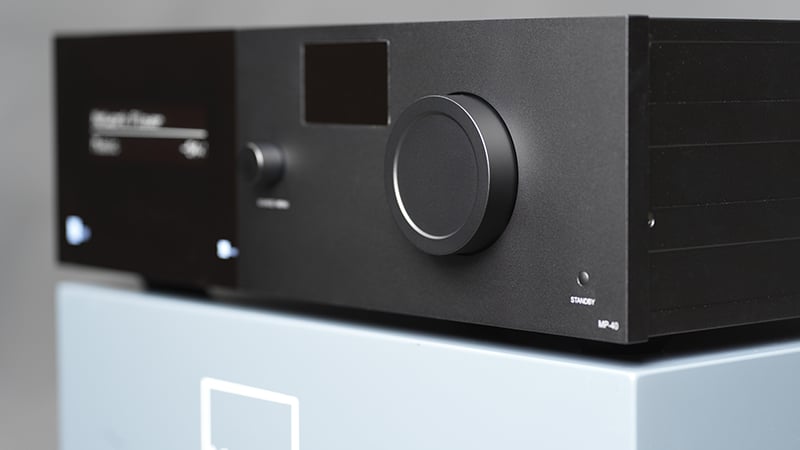

MP-40 detailed view

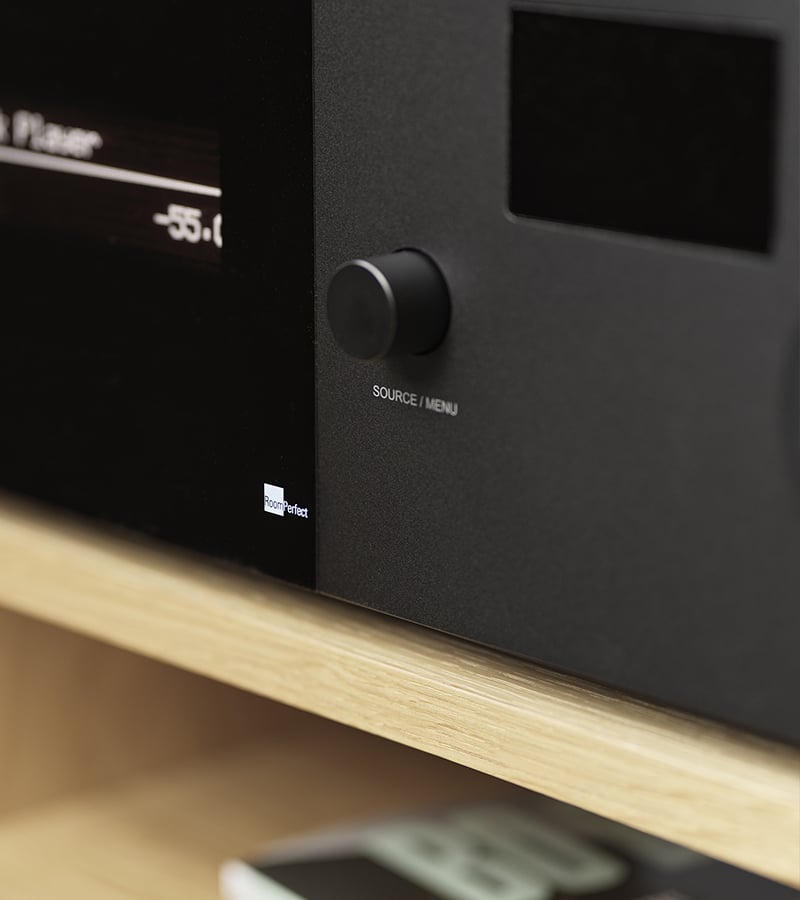

MP-40 lifestyle environment

State-of-the-art HDMI processing

With three HDMI inputs and two outputs, the MP-40 2.1 supports HDMI 2.1 including eARC, Dynamic Lip-Sync and QMS (Quick Media Switching) as well as the latest decoding and post-processing formats. It supports 40 Gbps fixed rate link (FRL) and 18 Gbps transition minimized differential signaling (TMDS) video rates, Variable refresh rate (VRR), Quick Frame Transport (or Fast Vactive), and auto low latency mode (ALLM) support and high dynamic range (HDR) metadata passthrough for HDMI dynamic HDR, HDR10+, and Dolby Vision™. eARC will allow for a full Dolby Atmos audio bitstream being returned to the processor from the television, ensuring full audio quality from the TV’s built-in media players.

RoomPerfect™ room correction

The MP-40 2.1 is equipped with Lyngdorf Audio’s proprietary RoomPerfect™ calibration technology, the world’s most sophisticated technology for adapting the sound system to the environment. The RoomPerfect™ calibration ensures a perfect surround sound experience in nearly any installation environment reducing or even eliminating bulky bass traps and other expensive acoustic treatment.

Decoders logo list

Control the MP-40 2.1 with an app

The My Lyngdorf App gives you full control of your MP-40 2.1 from your phone or tablet. Adjust volume, select inputs, RoomPerfect profiles, Voicings, and access internet radio through an intuitive interface.

Learn more about the app →

Specifications

Decoding12 decoding channels, 16 x XLR analog outputs, Dolby Atmos®, DTS:X®, AURO-3D®, all legacy codecs
Post processingDolby Surround, AURO-MATIC®, DTS Neural:X
Audio inputs3 x HDMI (≤192kHz/24bit), 1 x S/P-DIF coaxial input (≤192kHz/24bit), 3 x S/P-DIF optical inputs (≤96Hz/24bit), 1 x USB audio input (≤192kHz/32bit), 1 x microphone input (XLR) for RoomPerfect™
Audio outputs16 x XLR analog outputs (8 Vrms max.), 1 x SPDIF coax digital ZONE output (Fix 96kHz/24bit)
EQRoomPerfect, Subwoofer level assistant, 32 x adjustable voicings holding ≤8 shelving, high/low pass or parametric filters with adjustable gain and Q
Media playerInternet radio (vTuner, airable), AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready, DLNA Support of FAT32 based media storage
Video inputs3 x HDMI™ (2.1 – HDCP 2.3), accepts 8k30 RGB/YCbCr 4:4:4 10-bit video, 8k60 YCbCr 4:2:0 10-bit high definition video, and 4k120 4:4:4 10-bit high frame rate video.
Video outputs2 x HDMI (HDCP 2.3)
Dimensions (H x W x D)14.0 x 45.0 x 35.9 cm / 5.5 x 17.7 x 14.1 in
Weight6.7 kg / 14.8 lbs
