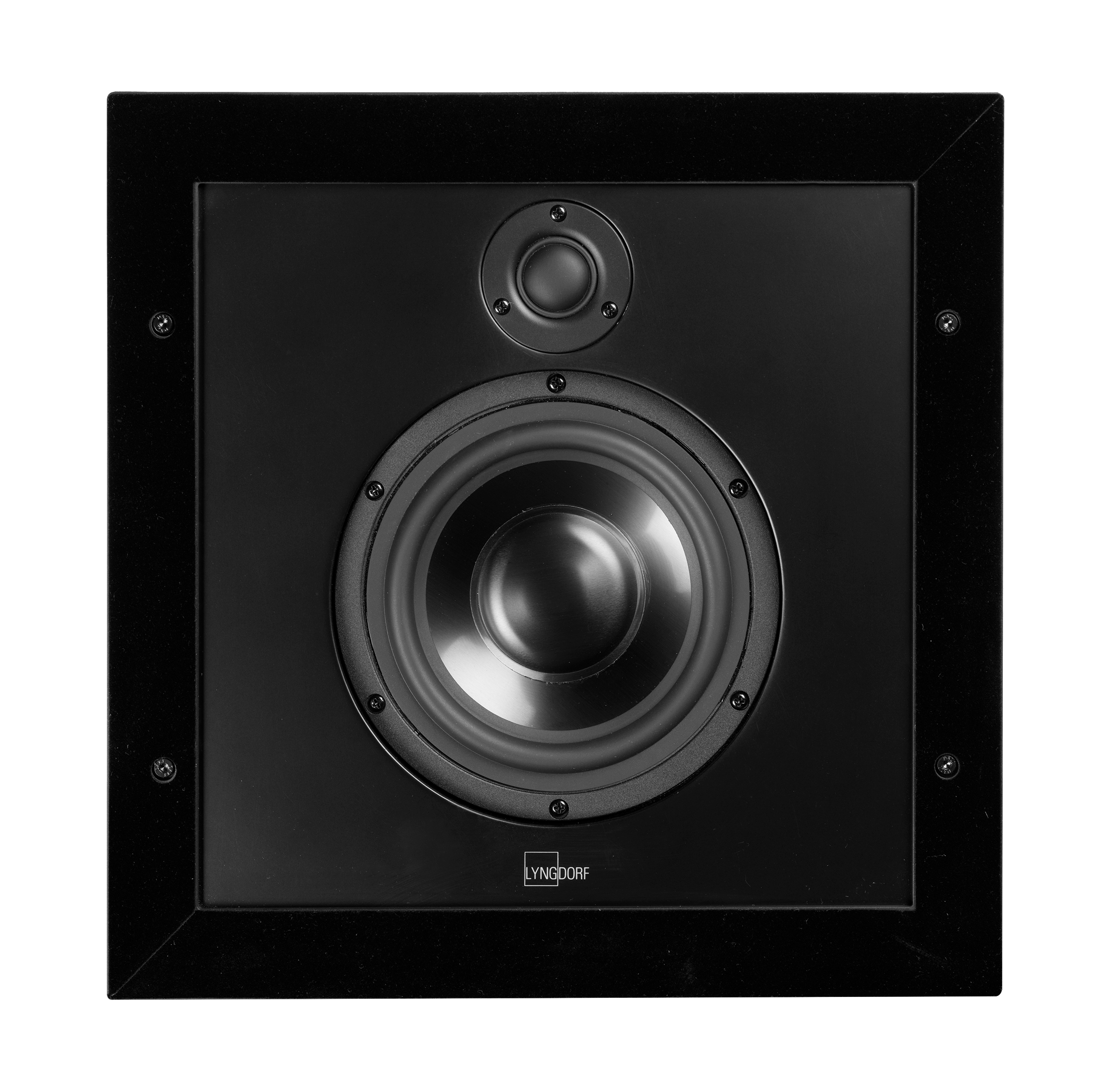

D-5 / D-5 IC - Slide 1
LYNGDORF AUDIO

D-5 / D-5 IC

Premium in-wall and in-ceiling loudspeakers for custom installation.

The Lyngdorf D-5 and D-5 IC are premium in-wall and in-ceiling loudspeakers designed for surround sound and immersive audio systems. The D series expands the range with discreet speakers that bring Lyngdorf Audio quality to home theater installations. Both models are equipped with their own pre-mounted closed MDF enclosure, ensuring defined and consistent sound performance.

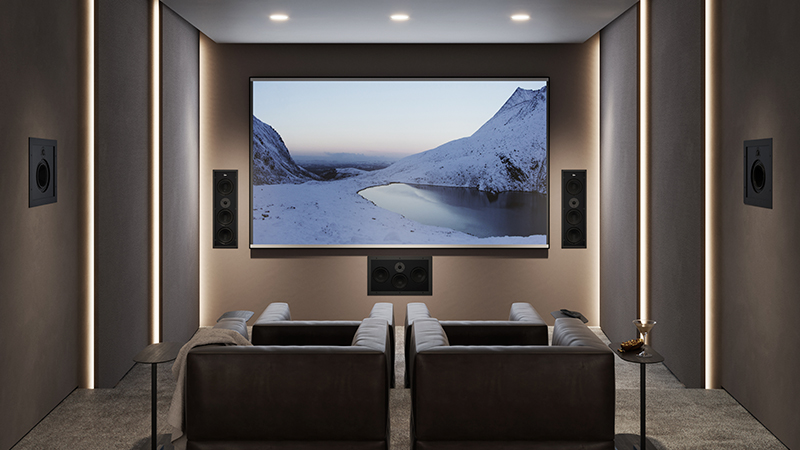

Lyngdorf D-5 custom installation setup

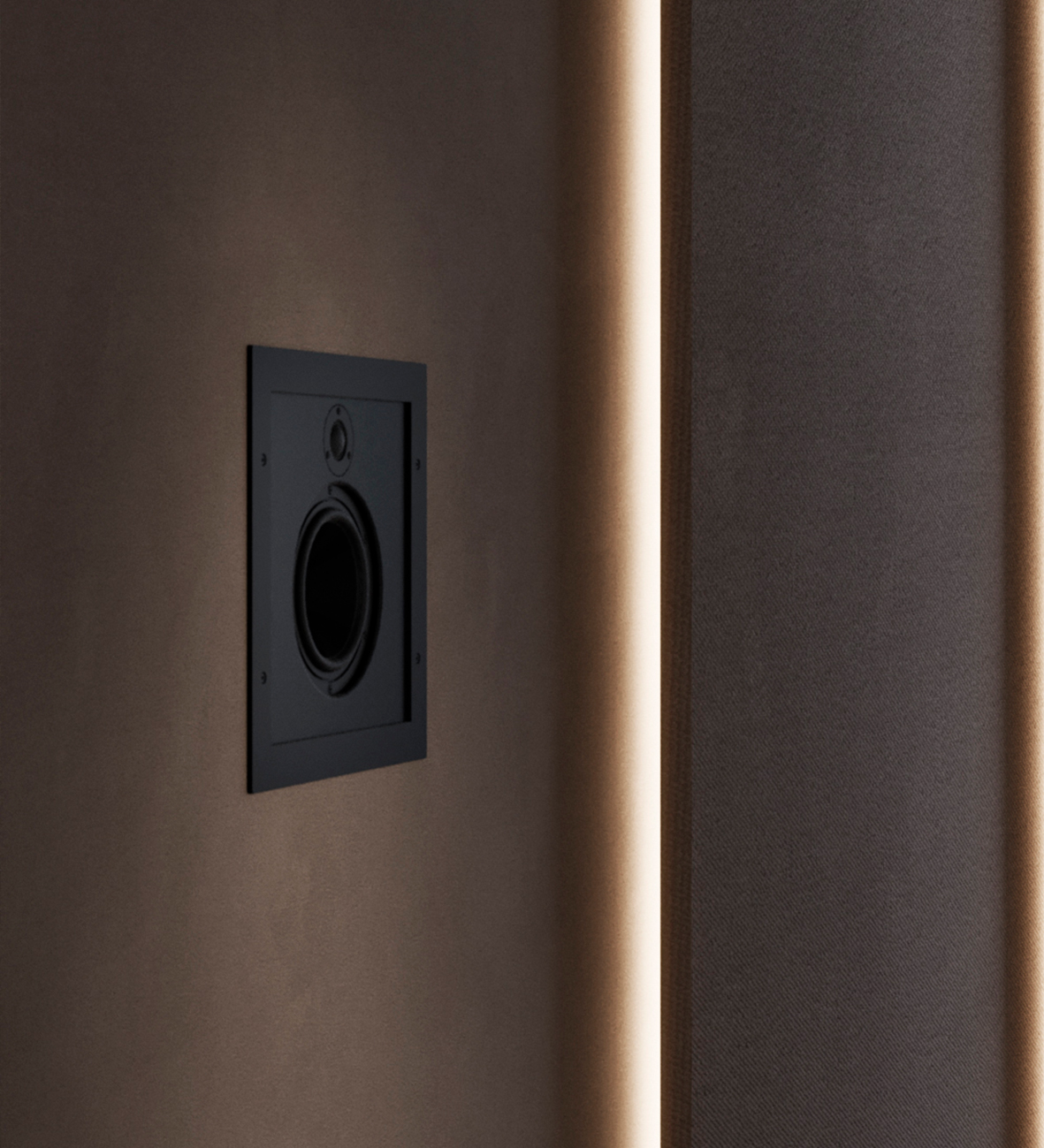

Lyngdorf D-5 design details

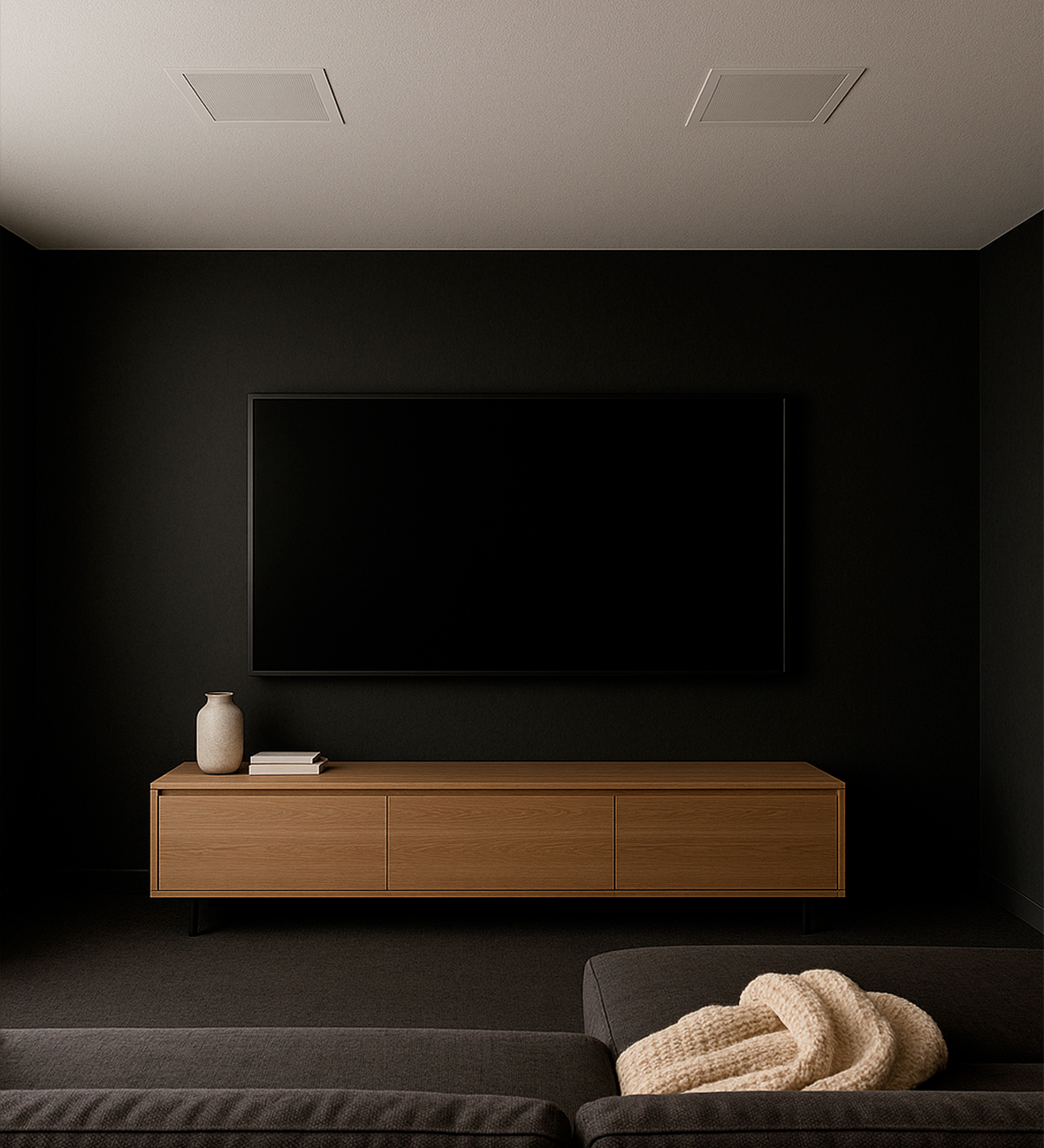

Lyngdorf D-5 cinema setup

Pre-mounted Enclosure & Easy Installation

All D-5 and D-5 IC models come with their own pre-mounted closed MDF enclosure, so that no after-market backbox or closed wall cavity is required. This ensures that the sound performance is always defined and consistent, depending less on the wall construction and the available space behind the wall. Practical mounting legs make the installation simple.

D-5 IC: Angled, Adjustable Tweeter Design

The D-5 IC (in-ceiling) features an angled, adjustable tweeter design. This allows the sound to be beamed downwards and inwards towards the primary listening area, making it ideal for height channels or when the speakers must be positioned outside the listening axis. The D-5 (in-wall) provides perfect coverage for side and rear surround channels.

Unique features

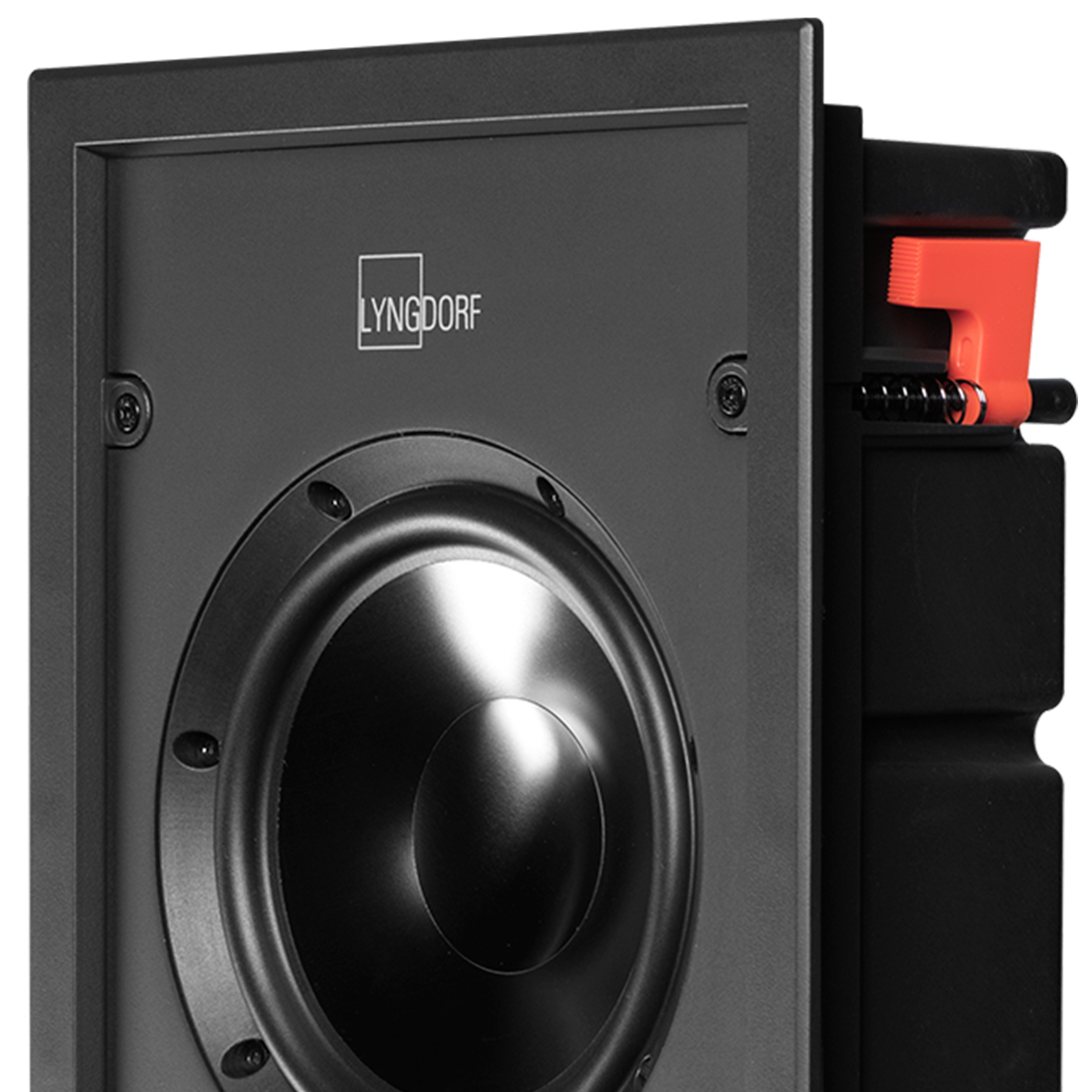

D-5 backbox enclosure

Pre-mounted enclosure

All D-5 models come with their own pre-mounted loudspeaker enclosure, so that no after-market backbox or closed wall cavity is required.

Lightweight aluminum cone driver

Lightweight aluminum cones

The midrange and woofer drivers feature light, stiff aluminum cones with a single breakup point, designed to play with high efficiency and minimum distortion.

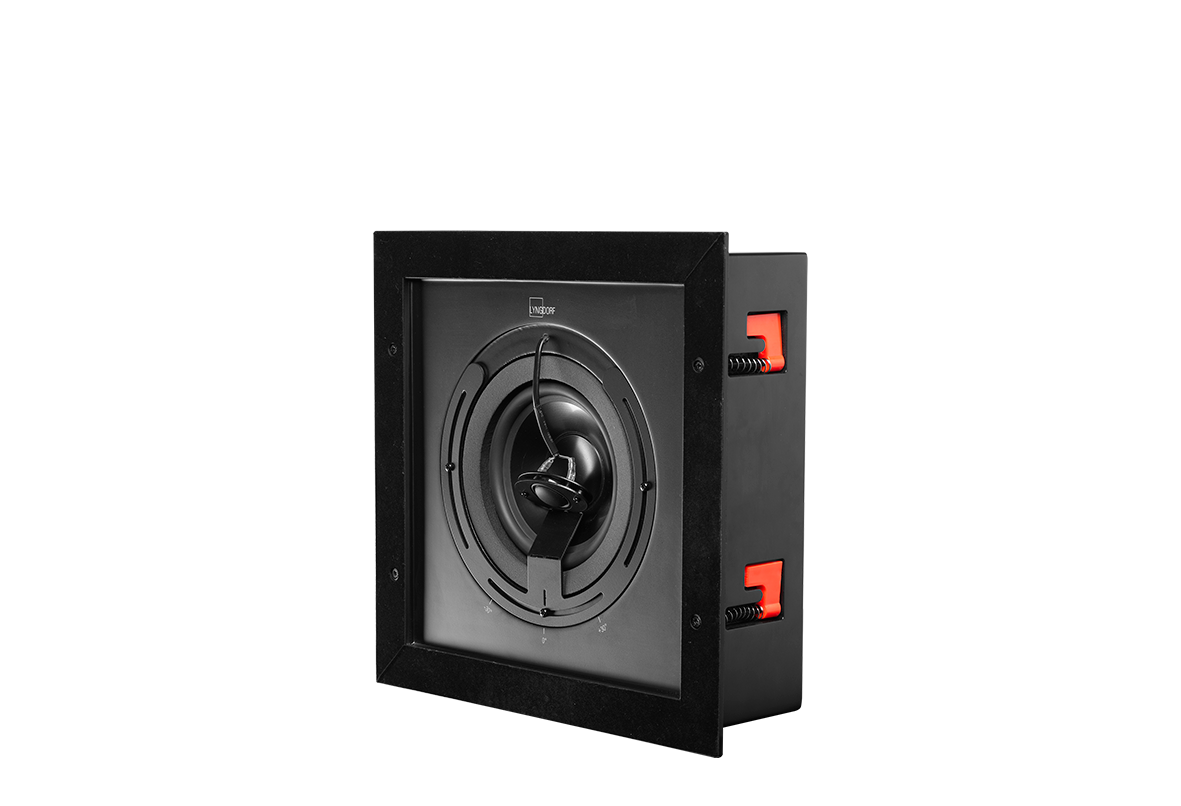

D-5 IC angled tweeter

Angled adjustable tweeter

The D-5 IC (in-ceiling) model features an angled, adjustable tweeter that lets you beam the sound directly down and inwards to the listening area.

Specifications

ModelLyngdorf D-5 / D-5 IC
Description2-way speaker with integrated MDF cabinet
Tweeter25 mm / 1” soft dome (angled, adjustable in D-5 IC)
Midrange/Woofer180 mm / 7”, aluminum cone, vented magnet
EnclosureClosed MDF cabinet (integrated backbox)
Frequency range80 – 22,000 Hz (-3 dB)
Nominal Impedance4 Ohm
Sensitivity88 dB (2.83V/1m)
Power handling100 W (IEC)
Crossover point2.2 kHz
Dimensions with grill (W x H x D)D-5: 362 x 362 x 109 mm / 14.3 x 14.3 x 4.3 inches D-5 IC: 362 x 362 x 114 mm / 14.3 x 14.3 x 4.5 inches
Cut-out dimensions (W x H x D)D-5: 334 x 334 x 104 mm / 13.2 x 13.2 x 4.1 inches D-5 IC: 334 x 334 x 109 mm / 13.2 x 13.2 x 4.3 inches
WeightD-5: 6.4 kg / 14.1 lbs D-5 IC: 6.9 kg / 15.2 lbs
FinishMatte black, white paintable metal grill
